Series   HDO  Helical Bevel Heavy Duty Gear Units
  The heavy-duty product that matches performance and versatility with compactness

  When high torque, robustness, reliability and long-operating life are required, Bonfiglioli's HDx Series is the best possible option. Thanks to high-quality materials and an optimized design, the HD Series can operate in the harshest environments, as well as in explosive atmospheres, with low maintenance costs and long service intervals. The output shaft can be chosen both in the parallel (HDP) or right angle (HDO) configuration to always ensure minimization of mounting space. The HDx Series can also be fully customized thanks to an extremely broad portfolio of options and accessories. It thus meets most requirements of a large number of applications.

Key benefits
Highly transmissible power
Robustness
Mounting flexibility
Reliability
Usable in explosive environments

  • Main options
     Fan cooling, cooling coil, oil heater
    External cooling unit
    Backstop
    Forced lubrication
    Temperature and oil level sensors
    Drywell
    Taconite seals
    ATEX certification for explosive
    environments

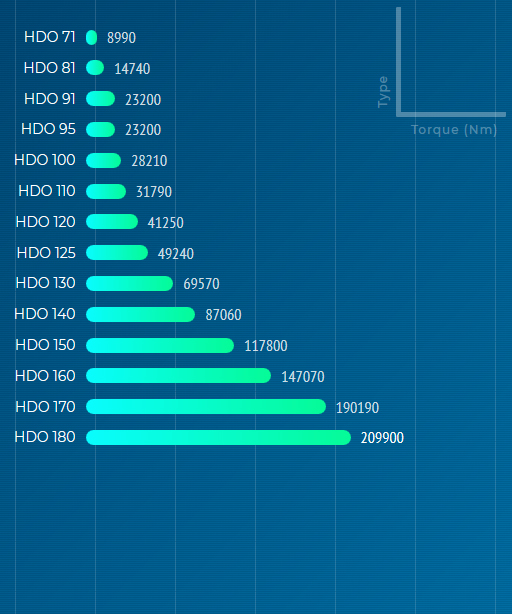

  • Torque range
     8,990 ... 209,000 Nm

  • Gear ratios
     5.6 ... 490

  • Output
    Single/double-sided solid input shaft (metric or inch dims)
    Keyed hollow shaft
    Shrink disc

  • Motors
     Input with solid shaft
    Input with e-motor coupling:
    - BN, BE, BX [IEC asynchronous]
    - BSR [IEC reluctance]

  • Motor options
    Thermistors and thermostat sensors
    Independent forced cooling
    Incremental, sin/cos absolute single/multi-turn encoders
    Tropicalization
    Anti-condensation heaters
  •
